Intelligent Control, Safety, and Real-Time Monitoring

We launched WIFI circuit breaker, GPRS circuit breaker, RS485 circuit breaker, 4G circuit breaker, Zigbee circuit breaker and other iot products with small Volume, modular, long life, intelligent and other features, real-time control of current, voltage, power accurate display. Let the current change, the voltage fluctuate, Load power consumption is more obvious. And equipped with electricity statistics function, support charging amount setting, quick query of historical data, control of electricity consumption state. Strong leakage protection function, fast tripping action, with impeccable protection mechanism, bring peace of mind protection. And through sharing, timing and other function,。To achieve the distribution of authority and multi-channel control. Wireless communication, remote control as one of the intelligent circuit breaker, to meet the user’s control of the circuit Sewing links, leading the industry technology, bring new wisdom experience.

What is a WiFi circuit breaker?

WiFi circuit breaker is a name of the WiFi communication method under Smart circuit breaker. Wifi is a kind of communication method with high popularity, global standard uniformity and easy matching. Unlike other methods, it may require wire connection or re-connection. Equipped with a separate gateway, ordinary users prefer to use wifi to connect.

Warranting reliability and safety for people and assets, MCBs are equipped with two tripping mechanisms: the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection.

WIFI Circuit Breaker is mainly divided into 2 parts:

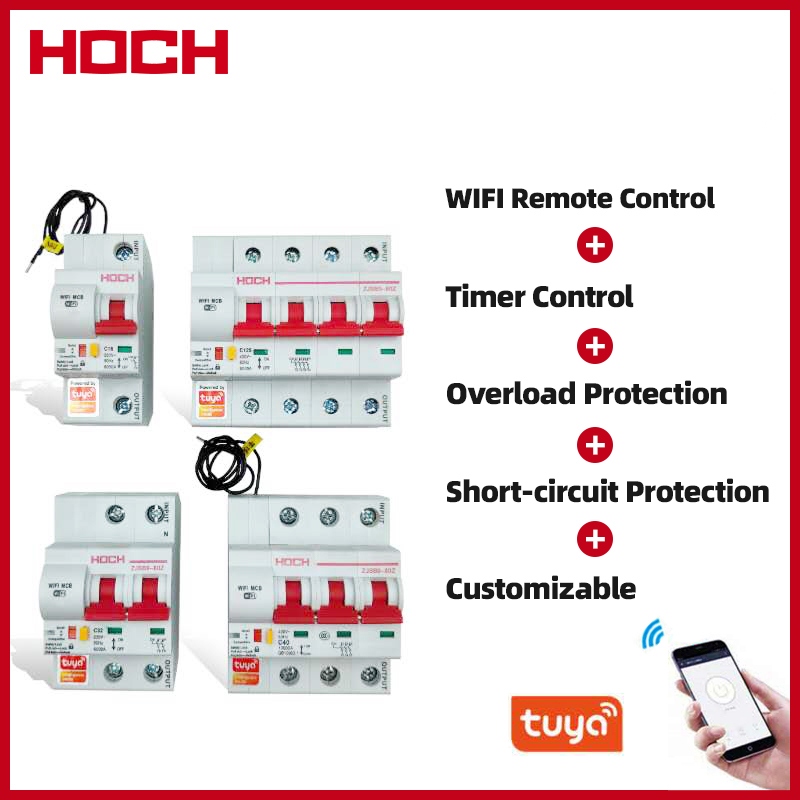

HOCH Smart WiFi RCBO

One is mechanical mechanism part, which is the conventional circuit breaker part.
Another one is chip part, which is the control part.

Mechanical mechanism part

Same as traditional circuit breakers include the over-current protection, short-circuit protection, and leakage protection, with good breaking capacity, it contains the same four primary components.

1.Operating mechanism – Provide circuit breaker opening and closing methods,
2.Frame – Protect the internal parts of the circuit breaker from external materials,
3.Contacts – Enable current to flow through the circuit breaker when closed,
4.Arc extinguisher – The arc is extinguished when the circuit breaker interrupts the fault.

Control part

Short circuits, leakages, overcurrent, overvoltage, undervoltage, metering and other circuit faults can all be monitored in real time by the smart chip control part. Through the mobile phone APP or computer program for remote control of different communication protocols, and monitor the data we need.

The terms of use for WiFi controlled circuit breaker

WiFi circuit breaker switch is widely used in industrial production and everyday life due to their convenient remote control of the power system.

1.It has functions such as remote control, warning protection, short circuit protection, energy metering statistics, and fault location, and is applied to low-voltage terminal distribution networks in industrial, commercial, and civil buildings and infrastructure in indoor buildings and similar places.

2.Real time monitoring of key electrical factors such as voltage, current, power, temperature, leakage, energy consumption, etc. in two pairs of circuits.

Application scenarios:

1: Transport Industry: Transportation hubs such as stations and rail transit, road lighting, park lighting, tunnel lighting;
2: Public Places: mall, cultural activity centers, libraries, science , technology centers, etc;
3: Power Systems: Metallurgical, chemical, and other industrial motors or power systems;
4: Outdoor Project: Outdoor LED Advertising Screen，Operators and tower base stations.

What are the advantages of using a WiFi circuit breaker instead of a traditional circuit breaker?

Energy-saving advantages

There may be a button in the room to turn off various household equipment. With an updated algorithm based on a specific model and a certain habit, we can automatically analyze whether it has to be turned on or whether the high voltage protection has a large breaking capacity.

The autorecloser tripping current can be up to 65kA to ensure that the circuit breaker (protector) is under severe stress in the case of failure. When we are not utilizing the electricity, we turn it off.

Safety advantages
The WiFi circuit breaker can be remotely locked to prevent malfunction. In the event of a power interruption, it may automatically shut down or shut down depending on the mode.

Intelligence advantages
Every switch in the room may be operated remotely, including lighting, televisions, freezers, and washing machines.

You can turn the lights on and off on a regular basis or use the remote control for manual control without the need for remote manual closing or opening.

It has several benefits, the most essential of which is that it safeguards our energy security. You can provide time, delay, and other parameters for remote control processing completion.
