Product Description

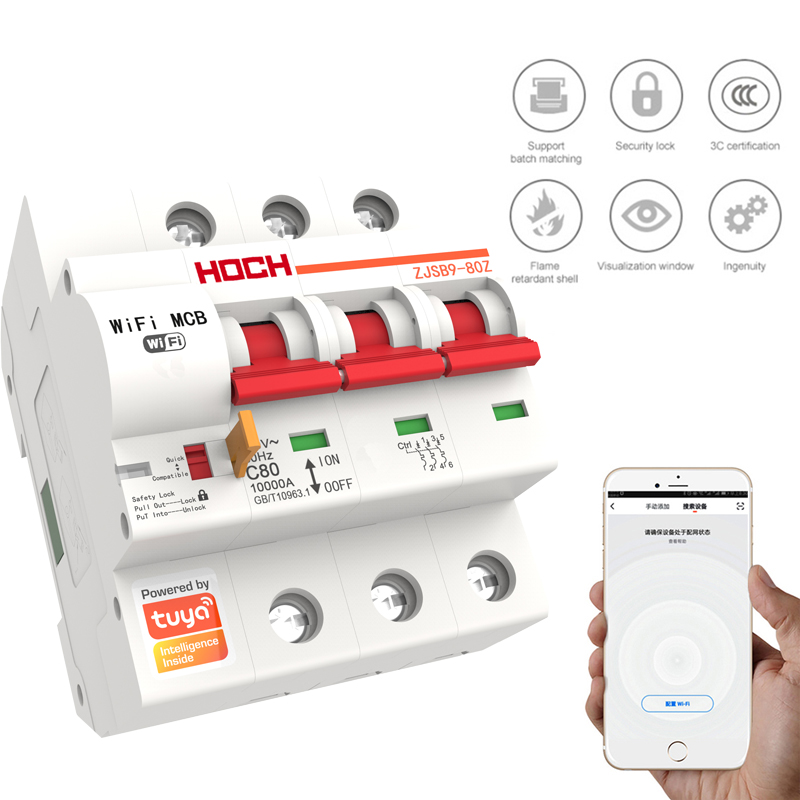

4P energy monitoring WIFI MCB It has the function of RS485/Modbus, can be controlled by computer, and has a metering function, which can store your electricity data in the computer.if you are interested in our 4P wifi smart circuit breaker with energy monitoring,smart wifi breaker,wifi smart circuit breaker with metering mt76,remote control wifi circuit breaker,Welcome to contact us .

Set button of breaker

1、The product is equipped with a “setting”Button,which is used for RS485 communication settings,there is no need to operate this button during the mobile phone APP pairing and control process;

2、When you press the setting button once,the setting indicator on the product will turn purple,at this time the product come into the RS485 setting mode,the address and protection of the product can be protected through RS485 communication,modify parameters such as threshold settings.Press the setting button again to exit the RS485 setting mode

3、When the setting button is not operated,15 minutes will automatically exit the automatic mode.

Compatiable button of breaker

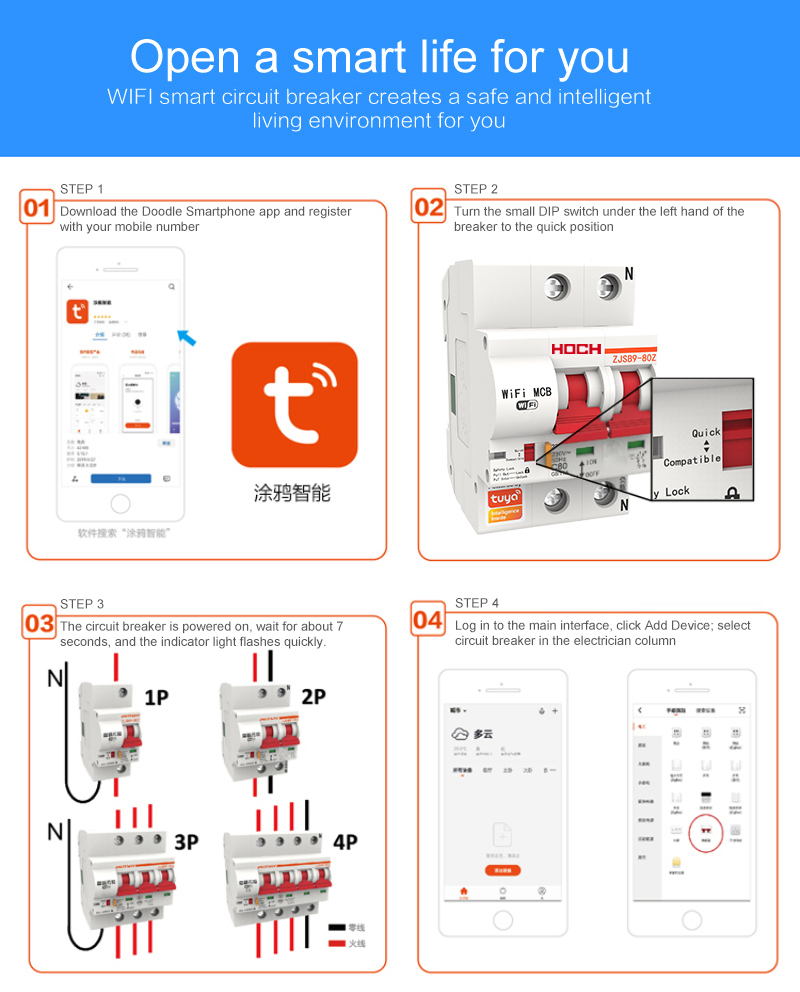

The product is equipped with a compatible button,which is used when the mobile phone pair in compatible mode;

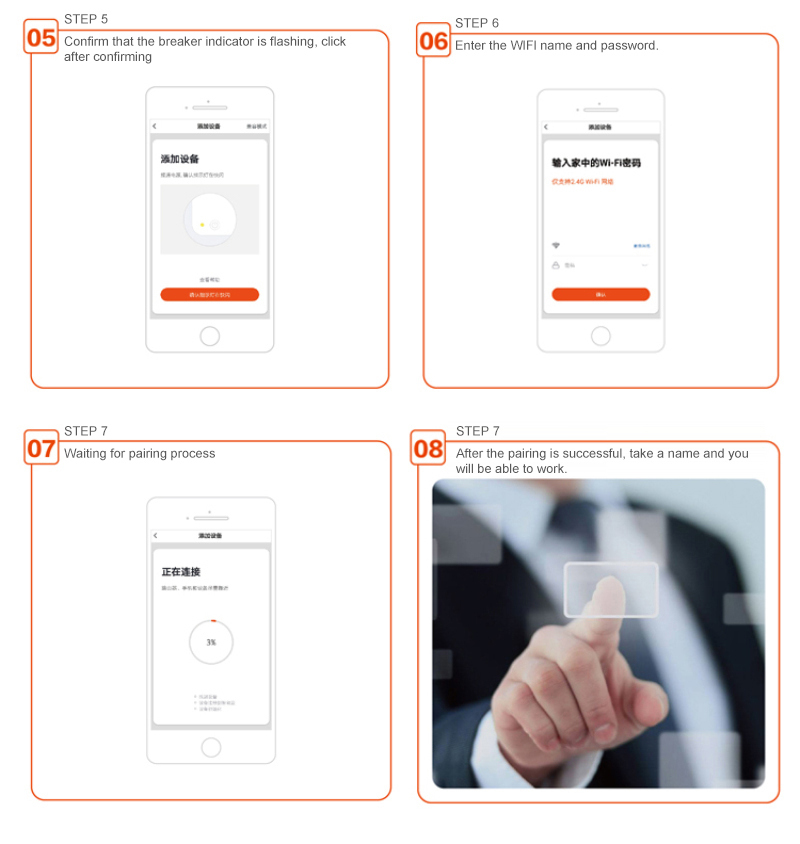

When pairing in compatibility mode is required,when the product is normally powered on ,press the compatibility button once,wait for about 15 seconds,the device pairing light will change to a slow and even flash(3 seconds/flash once)when the device has entered the compatibility mode,you can open the APP to pair according to the compatibility mode.

Set light of breaker

There is a “setting”light on the product,which will light up normally after power on,indicating that there is power to enter

When the product is in the closed position,set the light to blue.When the product is in the open position,Set the light t red.

When the setting button on the circiuit breaker is pressed once,the indicator light will turn purple,Press again,will be restored to its original state.

Pair light

There is a pairing light on the product,and the flashing mode of the light explains the state of the product;

When the display is steady on,it means that the pairing work is normal and is in network operation;

When the display flashes evenly (0.5 seconds/Flash once),It means the product is in fast mode

When the display is flashing slowly and evenly (3 seconds/flash once),it means that the product is in compatibility mode.
