1.Application

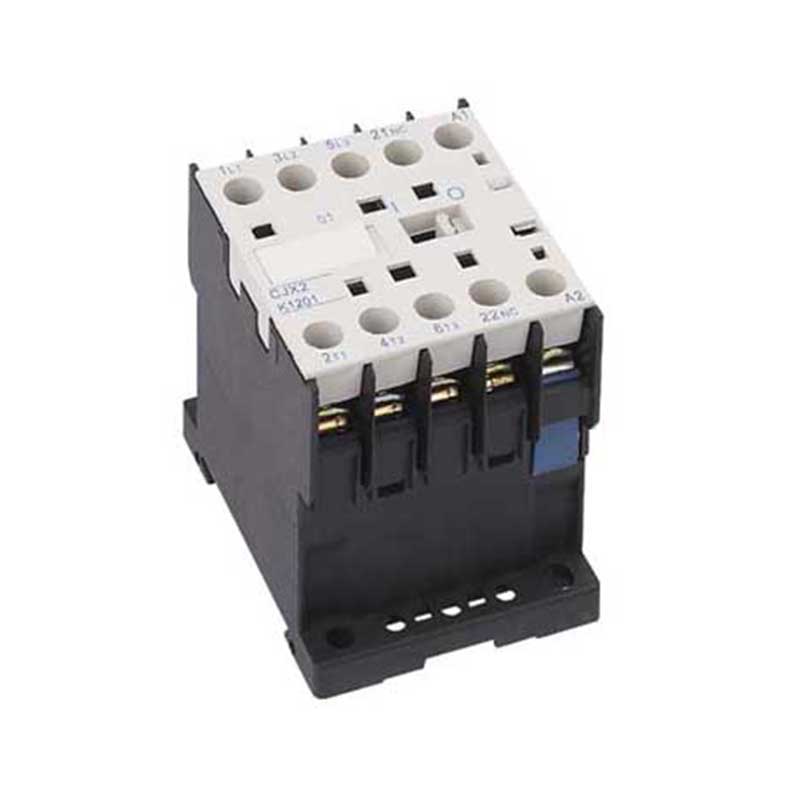

CJX2-K series AC contactor(hereinafter to be referred as contactor), it mainly applies to the circuitof AC 50Hz/60Hz, and rated insulation voltage 690V. When used in AC-3, and rated operationavoltage 380V and rated current up to 12A, for long distance breaking circuit and frequently startingor control the motor. Combined with proper thermal overload relay can protect load circuit. Contactorcan frequently start and control AC electromotor.
This product conforms to GB14048.4、1EC60947-4-1 standard.
2. Model And Meaning
CJ X 2 – K □ □ □ N Z
CJ :AC contactor
X : Miniature
2 : Design sequence No.
K : Structure Derived code
□ : Rated operational current ( AC-3 380V )
□ : Number of N/O auxiliary contacts
□ : Number of N/C auxiliary contacts

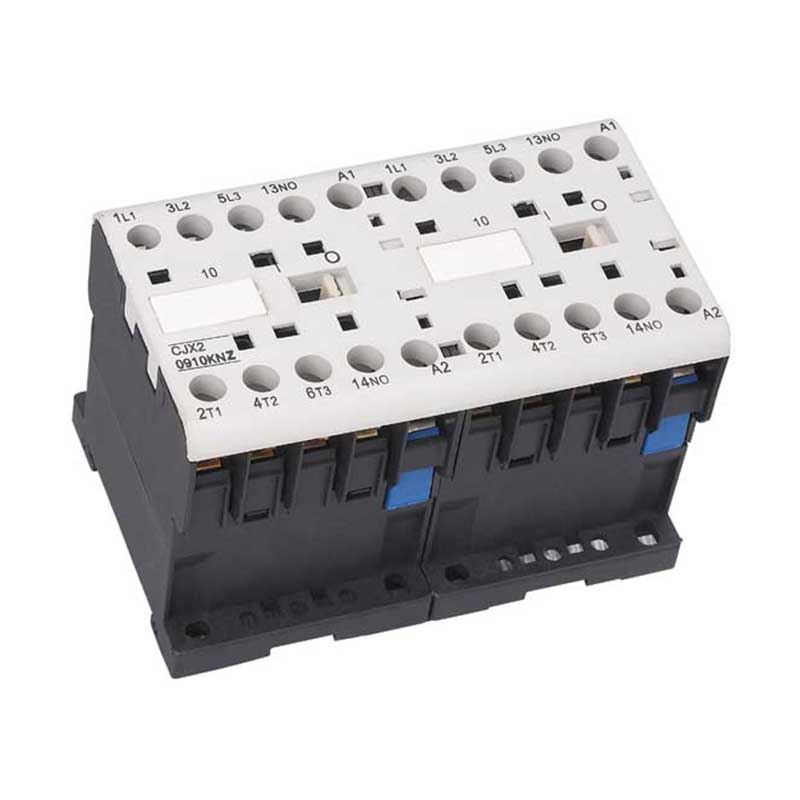

N : N: Reversing contactor, NO N: single contactor
Z : Z: DC operate, NO Z: AC operate
3. Normal Running And Installation Conditions
3.1 Ambient air temperature: -5℃~ +40’℃, the average value should not exceed +35’℃ within 24 hours.
3.2 Elevation: at most 2000m.
3.3 Atmospheric conditions: When the temperature at 40, the relative humidity of atomsphere should be at the most50%. When at relatively low temperatures, it could have higher relative humidity. Monthly maximum relative humidity could be not more than 90%. Special measures should be taken due to occurrence of dews.
3.4 Class of pollution:Class 3
3.5 Installation category: Ⅲ
3.6 Installation conditions: Degree of inclination between fiting surface and vertical surface should not exceed
3.7lmpact shock: Product should be installed and used in the place where often shakes and impacts.
4. Main Parameter And Technical Characteristic
● Table 1
| ltem / Parameter / Model | 6 | 9 | 12 | ||
| Rated operational current(A) | 380V | AC-3 | 6 | 9 | 12 |
| AC-4 | 2.6 | 3.5 | 5 | ||
| Rated insulation voltage(V) | 690 | 690 | 690 | ||
| Conventional heating current(A) | 16 | 16 | 16 | ||
| Power of controllable 3-phase squirrel-cage motor(kW) AC-3 |
220V | 1.5 | 2.2 | 3 | |
| 380V | 2.2 | 4 | 5.5 | ||
| 660V | 3 | 5.5 | 7.5 | ||
| Operational frequency (operations/h) |
Electric life | AC-3 | 1200 | 1200 | 1200 |
| AC-4 | 300 | 300 | 300 | ||
| Mechanical life | 3600 | 3600 | 3600 | ||
| Electric life (104operations) |
AC-3 | 50 | 50 | 50 | |
| AC-4 | 10 | 10 | 10 | ||
| Mechanical life(10⁴operations) | 1000 | 1000 | 1000 | ||
● Table 2
| ltem / Parameter / Model | 6 | 9 | 12 | ||
| Auxiliary contact block | Combination | F4-K20、F4-K02、F4-K11、F4-K31 F4-K13、F4-K40、F4-K04 |
|||
| Conventional heating curent | 6A | 6A | 6A | ||
| Control capacity | AC-15360VA;DC-1333W | ||||
| Matching fusing model | RT16-16 | RT16-16 | RT16-16 | ||
| Average power | Pick-up | 30 | 30 | 30 | |
| consumption (VA) 20°C | 50 Hz | Holding | 4.5 | 4.5 | 4.5 |
| Number of piece | 1 | 1 | 1 | ||
| Cable(mm²) | 2.5 | 2.5 | 2.5 | ||
| Screw size | M3 | M3 | M3 | ||
| Tightening torque(N ·m) | 0.5 | 0.5 | 0.5 | ||
| Unit weight(kg) | CJX2-K | 0.18 | 0.18 | 0.18 | |
| CJX2-KN | 0.36 | 0.36 | 0.36 | ||
| CJX2-KZ | 0.18 | 0.18 | 0.18 | ||
5. Overall And Mounting Dimensions

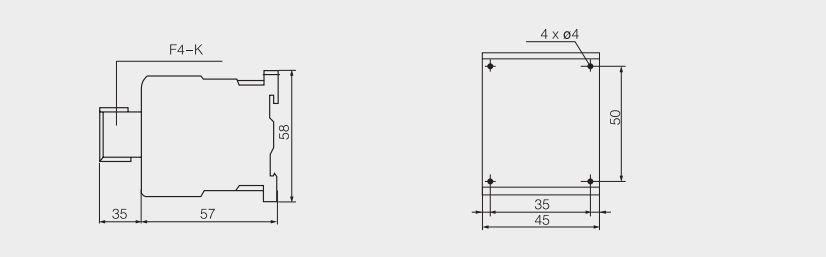

Photo 1 CJX2-K06~K12

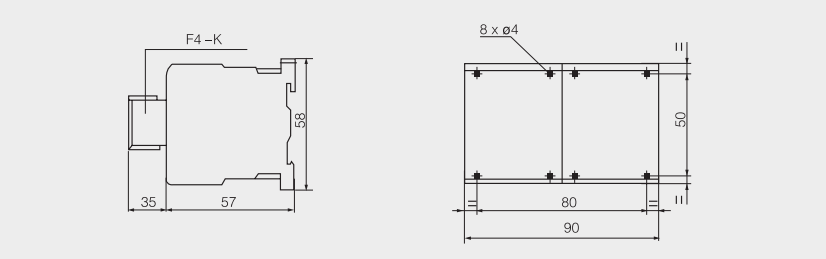

Photo 2 CJX2-K06N~K12N
6. Ordering Instructions
When placing an order, you should point out the below:
Product name and model, rated operational voltage and frequency of coil, order quantity
Ordering example: CJX2-K0910 AC 220V 50Hz 10PCS
1.Application
CJX2-E series AC contactor(hereinafter to be referred as contactor), it mainly applies to the circuitof AC 50Hz/60Hz, and rated insulation voltage 690V. When used in AC-3, and rated operationavoltage 380V, rated current up to 9A, for long distance breaking circuit and frequently starting orcontrol the motor. Combined with proper thermal overload relay can protect load circuit. Contactorcan frequently start and control AC electromotor.
This product conforms to GB14048.4、IEC60947-4-1 standard.
2. Model And Meaning
CJ X 2 – E □ □ □ N
CJ :AC contactor
X : Miniature
2 : Design sequence No.
K : Structure Derived code
□ : Rated operational current ( AC-3 380V )
□ : Number of N/O auxiliary contacts
□ : Number of N/C auxiliary contacts
N : N: Reversing contactor, NO N: single contactor
3. Normal Running And Installation Conditions
3.1 Ambient air temperature: -5℃~ +40’℃, the average value should not exceed +35’℃ within 24 hours.
3.2 Elevation: at most 2000m.
3.3 Atmospheric conditions: When the temperature at 40, the relative humidity of atomsphere should be at the most50%. When at relatively low temperatures, it could have higher relative humidity. Monthly maximum relative humidity could be not more than 90%. Special measures should be taken due to occurrence of dews.
3.4 Class of pollution:Class 3
3.5 Installation category: Ⅲ
3.6 Installation conditions: Degree of inclination between fiting surface and vertical surface should not exceed
3.7lmpact shock: Product should be installed and used in the place where often shakes and impacts.
4. Main Parameter And Technical Characteristic
● Table 1
| ltem / Parameter / Model | 6 | 9 | ||
| Rated operational current(A) | 380V | AC-3 | 6 | 9 |
| AC-4 | 2.6 | 3.5 | ||
| Rated insulation voltage(V) | 690 | 690 | ||
| Conventional heating current(A) | 16 | 16 | ||
| Power of controllable 3-phase squirrel-cage motor(kW) AC-3 |
220V | 1.5 | 2.2 | |
| 380V | 2.2 | 4 | ||
| 660V | 3 | 5.5 | ||
| Operational frequency (operations/h) |
Electric life | AC-3 | 1200 | 1200 |
| AC-4 | 300 | 300 | ||
| Mechanical life | 3600 | 3600 | ||
| Electric life (104operations) |
AC-3 | 50 | 50 | |
| AC-4 | 10 | 10 | ||
| Mechanical life(10⁴operations) | 1000 | 1000 | ||
● Table 2
| ltem / Parameter / Model | 6 | 9 | ||
| Auxiliary contact block | Combination | F4-K20、F4-K02、F4-K11、F4-K31 F4-K13、F4-K40、F4-K04 |
||
| Conventional heating curent | 6A | 6A | ||
| Control capacity | AC-15 360VA; DC-13 33W | |||
| Matching fusing model | RT16-16 | RT16-16 | ||
| Average power | Pick-up | 30 | 30 | |
| consumption (VA) 20°C | 50 Hz | Holding | 4.5 | 4.5 |
| Number of piece | 1 | 1 | ||
| Cable(mm²) | 2.5 | 2.5 | ||
| Screw size | M3 | M3 | ||
| Tightening torque(N ·m) | 0.5 | 0.5 | ||
| Unit weight(kg) | CJX2-E | 0.15 | 0.15 | |
| CJX2-EN | 0.3 | 0.3 | ||
5. Overall And Mounting Dimensions

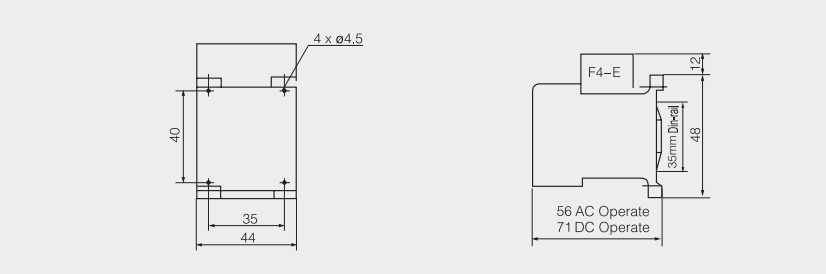

Photo 1 CJX2-E06~E19

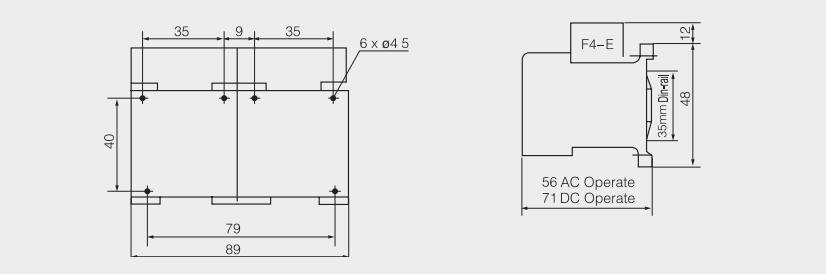

Photo 2 CJX2-E06N~E19N
6. Ordering Instructions
When placing an order, you should point out the below:
Product name and model, rated operational voltage and frequency of coil, order quantity
Ordering example: CJX2-E0910 AC 220V 50Hz 10PCS
