CJX2 -F115-800 Series AC contactor

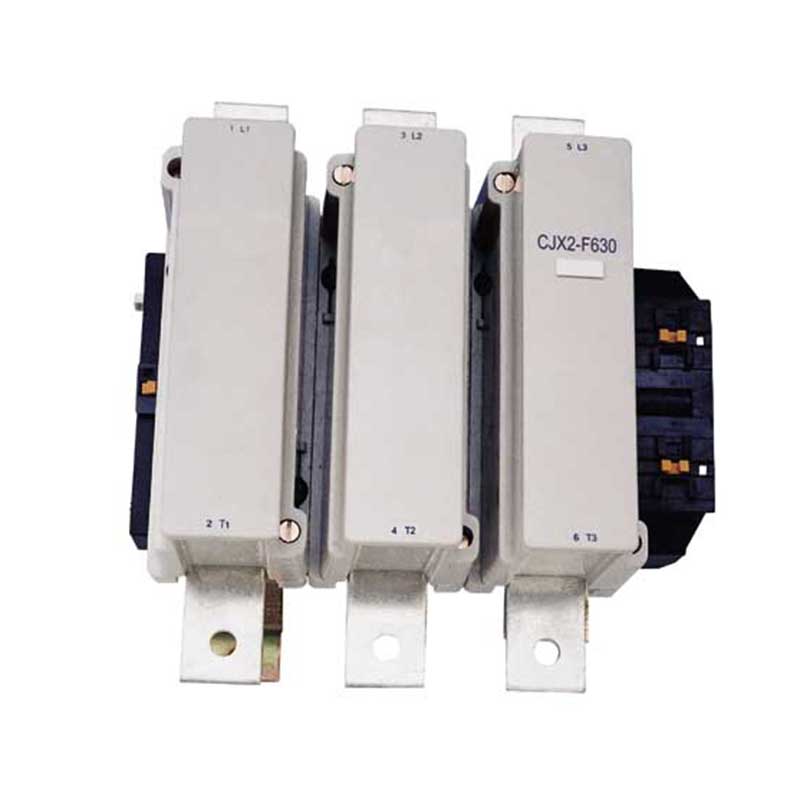

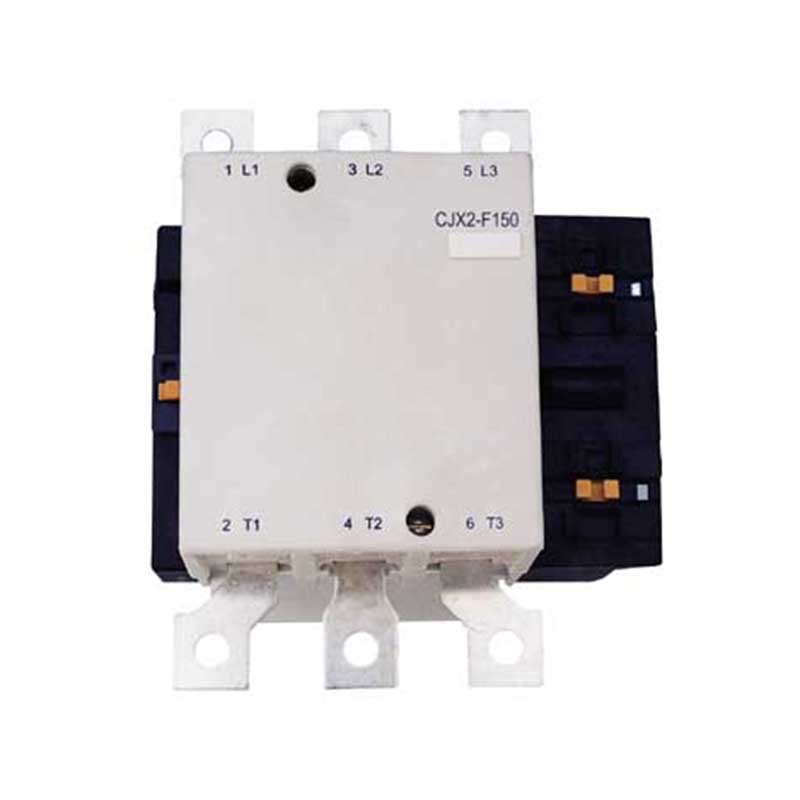

CJX2-F115 CJX2-F150 CJX2-F630 CJX2-F780

Product specifications:

The CJX2 series AC contactors (hereinafter referred to as contactors) are primarily used in circuits operating at 50Hz (or 60Hz) AC, with a rated operating voltage up to 690V and a rated operating current up to 95A in the AC-3, 400(380)V utilization category. They are used for remote circuit connection and disconnection, frequent starting, and control of AC motors. They can also be combined with appropriate thermal relays to form electromagnetic starters to protect circuits from potential operational overloads. They comply with the following standards: GB/T 14048.4 and IEC/EN 60947-4-1.
Rated current: 9~800A
Control mode: AC

Product Information

Main Parameter And Technical Characteristic

●Table 1

Model / Parameter / ltem	Conven- tional heating current (A)	Rated operational current (A)			Power of controllable 3-phase squirel-cage motor(kW)			Opera-tional frequency (operations/h) (AC-3)	AC-3 Electric life (10⁴ operations)	Mechani-cal life (10⁴ operations)	Matching fusing (SCPD)	Unit weight (kg)
		AC-3			AC-3						Matching fusing (SCPD)	Unit weight (kg)
		380V	660V	1000V	380V	660V	1000V				Model	2P	3P	4P
CJX2-F115	200	115	86	46	55	80	65	600	60	300	RT16-1	–	3.6	4.3
CJX2-F150	200	150	107	50	75	100	65	600	60	300	RT16-1	–	3.7	4.5
CJX2-F185	275	185	118	71	90	110	100	600	50	300	RT16-2	–	4.6	5.4
CJX2-F225	275	225	135	90	110	129	100	600	50	300	RT16-2	–	4.7	5.7
CJX2-F265	315	265	170	112	132	160	147	600	50	300	RT16-2	–	7.1	8.5
CJX2-F330	380	330	225	155	160	220	160	600	50	300	RT16-3	–	8.5	10
CJX2-F400	450	400	235	200	200	280	185	300	30	100	RT16-3	7.3	8.5	10
CJX2-F500	580	500	290	232	250	330	315	300	30	100	RT16-4	9.1	10.8	12.9
CJX2-F630	800	630	360	331	335	450	425	300	20	100	RT16-4	14.1	17.4	20.5
CJX2-F780	830	780	440	400	400	470	450	300	20	100	RT16-4	23.5	40	–
CJX2-F800	860	800	450	415	400	470	450	300	20	100	RT16-4	–	19	–

5.1 Operating characteristic
5.1.1 Pick-up voltage:85%Us~110%Us
5.1.2 Drop-out voltage:20%Us~75%Us
5.2 Main code of coil ( Table2 )

●Table 2

Contactor model / Coil code / Control voltage(V)	110	127	220	380	Average power consumption(20℃)		Unit weight (kg)	Photo
Contactor model / Coil code / Control voltage(V)	110	127	220	380	Pick-up(VA)	Holding(VA)	Unit weight (kg)	Photo
CJX2-F115、F150	FF110	FF127	FF220	FF380	550	45	0.44
CJX2-F185、F225	FG110	FG127	FG220	FG380	800	55	0.5
CJX2-F265	FH110	FH127	FH220	FH380	1200	13	0.73
CJX2-F330	FH110	FH127	FH220	FH380	1200	13	0.84
CJX2-F400	FJ110	FJ127	FJ220	FJ380	1200	20	0.96
CJX2-F500	FK110	FK127	FK220	FK380	1250	24	1.1
CJX2-F630	FL110	FL127	FL220	FL380	1650	22	1.3
CJX2-F780	FX110	FX127	FX220	FX380	2100	50	2.6
CJX2-F800	FL110	FL127	FL220	FL380	1650	22	1.5

Cable Connection

●Table 3

Cable connection / Parameter / Model	CJX2-F115	CJX2-F150	CJX2-F185	CJX2-F225	CJX2-F265	CJX2-F330	CJX2-F400	CJX2-F500	CJX2-F630	CJX2-F780	CJX2-F800
Number of piece	1	1	1	1	1	1	2	2	2	2	2
Cable cross-sectional(mm²)	95	120	150	185	240	240	150	240	240	240	240
Number of piece	2	2	2	2	2	2	2	2	2	2	2
Cu busbar(mm)	20×3	25×3	25×3	32×4	32×4	30×5	30×5	40×5	60×5	60×5	60×5
Bolt connection	M6	M8	M8	M10	M10	M10	M10	M10	M12	M12	M12

Overall And Mounting Dimensions

Model	CJX2-F115		CJX2-F150		CJX2-F185		CJX2-F225		CJX2-F265		CJX2-F330		CJX2-F400			CJX2-F500			CJX2-F630			CJX2-F800
Model	3P	4P	3P	4P	3P	4P	3P	4P	3P	4P	3P	4P	2P	3P	4P	2P	3P	4P	2P	3P	4P	3P
Amax	167	204	167	204	170	211	170	211	202	247	218	261	215	215	261	235	235	288	310	310	389	310
Bmax	163	163	171	171	175	175	175	175	203	20	3210	21	210	210	210	240	240	240	304	304	304	304
Cmax	172	172	172	172	183	183	183	183	215	215	223	223	223	223	223	235	235	235	257	257	257	257
P	37	37	40	40	40	40	48	48	48	48	48	48	48	48	48	55	55	55	80	80	80	80
S	20	20	20	20	20	20	25	25	25	25	25	25	25	25	25	30	30	30	40	40	40	40
∅	M6	M6	M8	M8	M8	M8	M10	M10	M10	M10	M10	M10	M10	M10	M10	M10	M10	M10	M12	M12	M12	M12
f	131	131	131	131	131	131	131	131	147	147	147	147	147	147	147	150	150	150	181	181	181	181
M	147	147	150	150	154	154	172	172	178	178	181	181	181	181	181	208	208	208	264	264	264	264
H	124	124	124	124	127	127	127	127	147	147	158	158	158	158	58	172	172	172	202	202	202	202
L	107	107	104	107	113.5	113.5	113.5	113.5	141	141	145	145	145	145	145	146	146	146	155	155	155	155
X1200~500V	10	10	10	10	10	10	10	10	10	10	10	10	15	15	15	15	15	15	20	20	20	20
X1660~1000V	15	15	15	15	15	15	15	15	15	15	15	15	20	20	20	20	20	20	30	30	30	30
Ga	80	80	80	80	80	80	80	80	96	96	96	96	80	80	80	80	80	80	180	180	180	180
Ha	106/119		106/119		106/119		106/119		106/119		106/119		170/180			170/180			180/190			180/190

Note: a.f: min.distance needed to mount and dismount the coil

B.X1: Confirm flashover distance according to working volt and breaking capacity

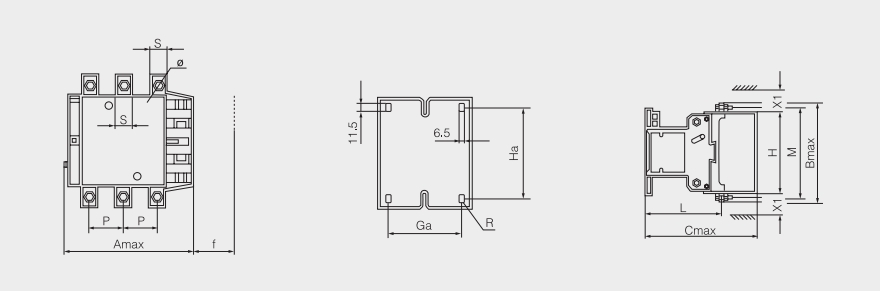

Photo 1 CJX2-F115~F330

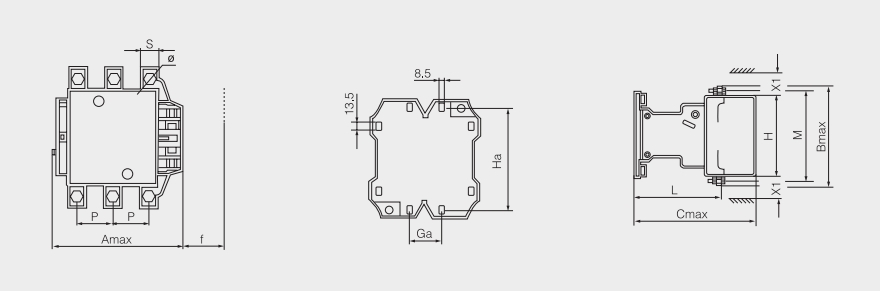

Photo 2 CJX2-F400~F500

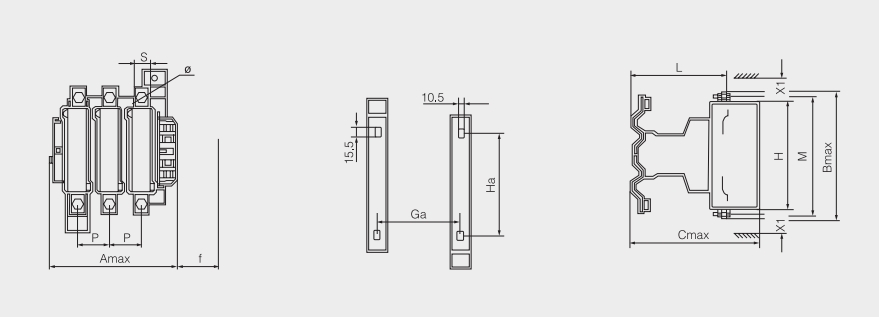

Photo 3 CJX2-F630~F800

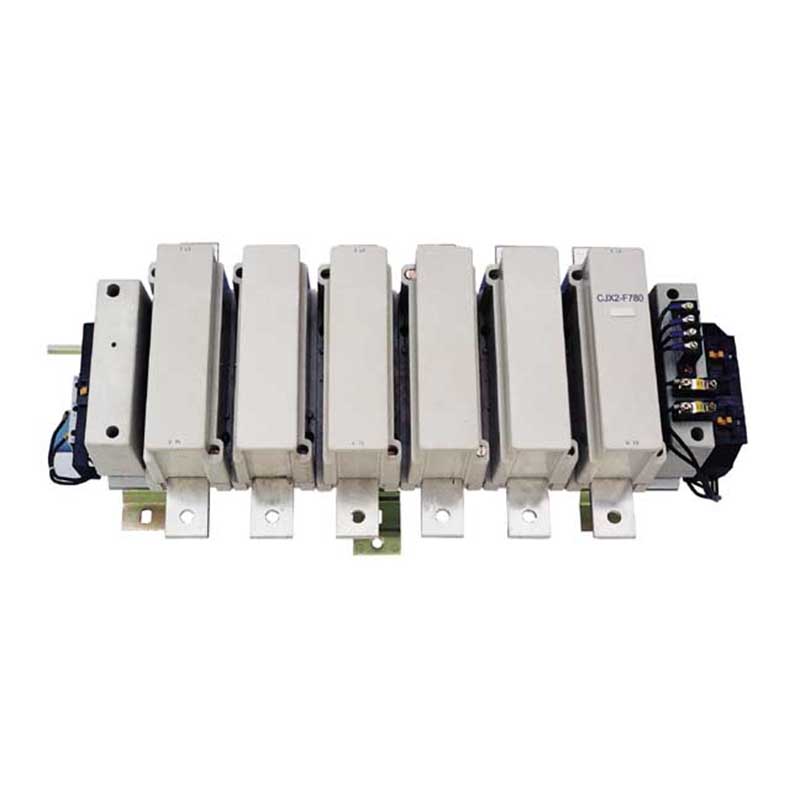

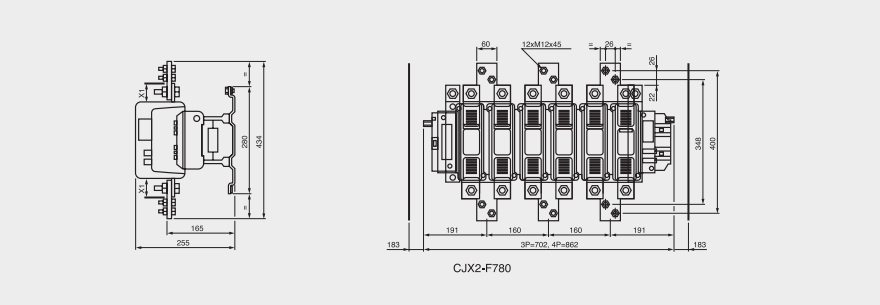

Photo 4 CJX2-F780

8.Ordering Instructions

When placing an order, you should point out the below:
Product name and model, rated operational voltage and frequency of coil, order quantity.
Ordering example: CJX2-F265 AC 220V 50Hz 60PCS
