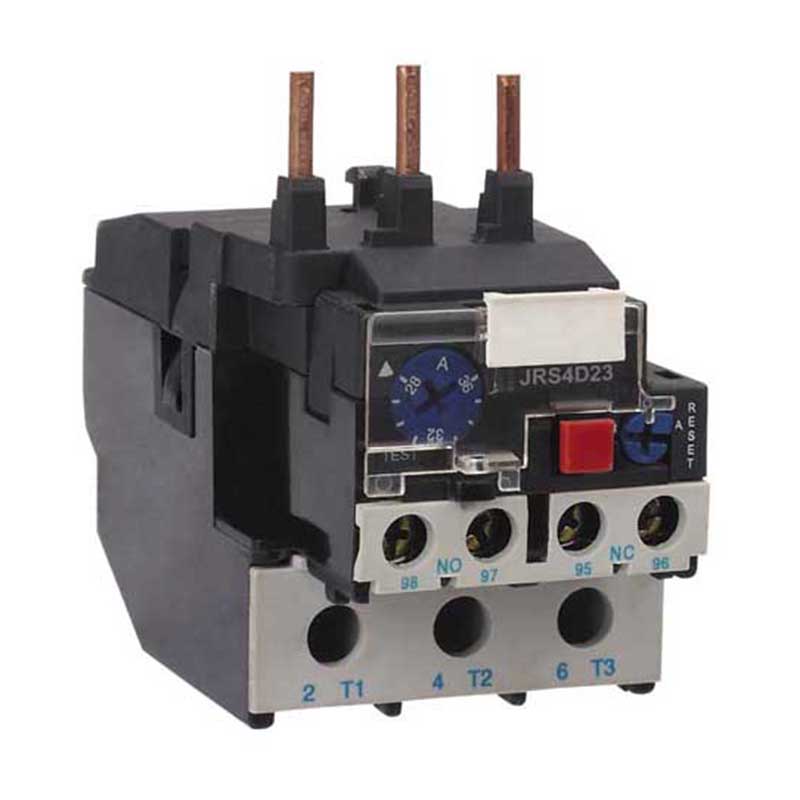

JRS4 Series Thermal Overload Relay

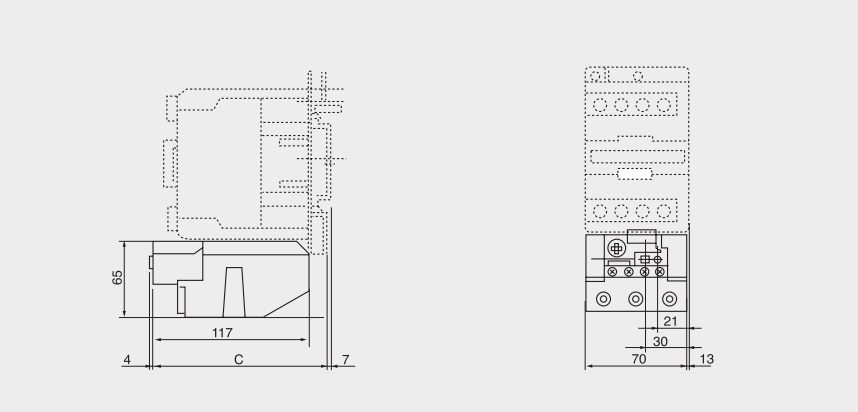

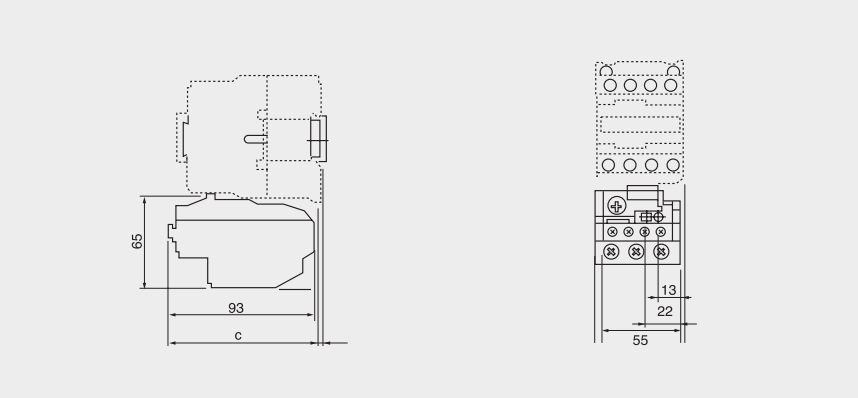

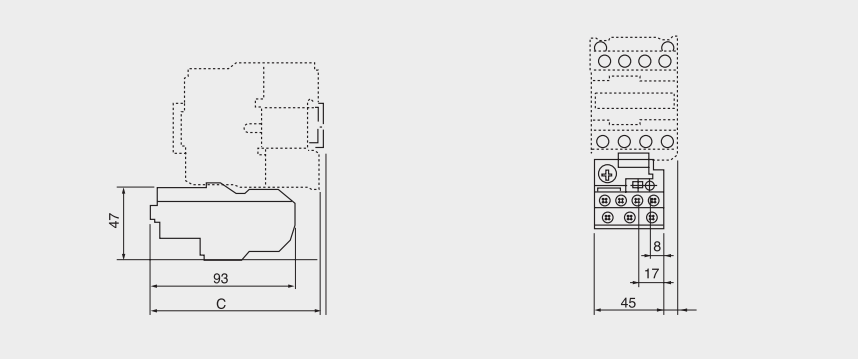

JRS4-13 JRS4-23 JRS4-33

Product specifications:

Product Information

The JRS4 series thermal overload relays (hereinafter referred to as thermal relays) are primarily used in circuits operating at 50Hz/60Hz, with a rated operating voltage of 690V or less and currents ranging from 0.1A to 80A, to protect three-phase AC motors from overload and phase failure. These relays offer reliable operation, including phase failure protection, temperature compensation, an operation indicator, manual reset, and stop functions (manual reset and stop functions are activated by the same button). They can be installed with contactors or as standalone relays. They comply with standards such as GB/T 14048.4 and IEC 60947-4-1. For modular installation, the corresponding thermal relay models are JRS1-09-25, JRS1-09-25X, JRS1-40-80, and JRS1-40-80X. For standalone (screw-mounted) installation, the corresponding thermal relay model is JRS1-40-80/F.

Rated operating voltage: 0.1~80A
Trip level: 10A
Rated insulation voltage: 690V

1.Application

JRS4 series thermal overload relay is suitable for the circuit of AC 50/60Hz,rated operational voltage up to 660V.And it can realize the function of overload and phase-failure protection for AC motor. This product conforms to GB14048.4、IEC60947-4-1 standard.

2.Modeland Meaning

JR S 4 – □ □ □□
JR -Thermal overload relay
S -Three phase
4 -Design sequence No.
□-Istallation specification
□ -Tripping grade
□□ -Current rating

3.Normal Running And Installation Conditions

1. Ambient air temperature:-5℃~+40℃,the average value should not exceed +35℃ within 24 hours.
2. Elevation: at most 2000m.
3. Atmospheric conditions: When the temperature at 40℃,the relative humidity of atomsphere should be at the most 50%. When at relatively low temperatures, it could have higher relative humidity. Monthly maximum relative humidity could be not more than 90%.Special measures should be taken due to occurrence of dews.
4. Class of pollution:Class 3
5. Installation category:Ⅲ
6. Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed ±5°
7. Impact shock Product should be instaled and used in the place where often shakes and impacts

4.Feature

Operating characteristic(Table1)

Operating characteristic	Series no.	Rated operational currentl/ln		Operating time Tp	Test condition	Ambient air temperature(℃)
		Any two phases	Another phases
Phase failure protection	1	1.00	0.90	>2h	Cold status	20±5
	2	1.15	0	<2h	Fight after iem No.1
Overloaded protection	1	1.05		>2h	Cold status	20±5
	2	1.20		<2h	Hight after iem No.1
	3	1.50		<4min	Right after item No.1
	4	7.20		4S<Tp≤10S	Cold status
Temperature compensation	1	1.00		2h	Cold status	40±2
	2	1.20		<2h	Right after item No.1
	3	1.05		>2h	Cold status	-5±2
	4	1.30		<2h	Fightafter itemNo.3

Current setting range(Table2)

Model	Current setting range(A)	Controllable motor power(AC3 KW) 220V 380V		Matched contactor	Unit weight (kg)
JRS4-D1302	0.1-0.16			CJX2-09~32	0.155
JRS4-D1302	0.16-0.25			CJX2-09~32	0.155
JRS4-D1303	0.25-0.4			CJX2-09~32	0.155
JRS4-D1304	0.6-0.63			CJX2-09~32	0.155
JRS4-D1305	0.63-1.0			CJX2-09~32	0.155
JRS4-D1306	1.0-1.6		0.37	CJX2-09~32	0.155
JRS4-D1307	1.6-2.5	0.37	0.75	CJX2-09~32	0.155
JRS4-D1308	2.5-4.0	0.55,0.75	1.1,1.5	CJX2-09~32	0.155
JRS4-D1310	4-6	1.1	2.2	CJX2-09~32	0.155
JRS4-D1312	5.5-8	1.5	3	CJX2-09~32	0.155
JRS4-D1314	7-10	2.2	4	CJX2-09~32	0.155
JRS4-D1316	9-13	3	5.5	CJX2-09~32	0.155
JRS4-D1321	12-18	4	7.5	CJX2-09~32	0.155
JRS4-D1322	17-25	5.5	11	CJX2-09~32	0.155
JRS4-D1353	23-32	7.5	15	CJX2-09~32	0.155
JRS4-D2353	23-32	7.5	15	CJX2-25~32	0.221
JRS4-D2355	30-40	10	18.5	CJX2-32	0.221
JRS4-D3353	23-32	7.5	15	CJX2-40~65	0.434
JRS4-D3355	30-40	10	18.5	CJX2-40~65	0.434
JRS4-D3357	37-50	11	22	CJX2-40~65	0.434
JRS4-D3359	48-65	15	25	CJX2-50~65	0.434
JRS4-D3361	55-70	18.5	30	CJX2-65	0.434
JRS4-D3363	63-80	22	37	CJX2-80	0.434
JRS4-D3365	80-95	32	40	CJX2-95	0.434
